Project
New Venlo Roof system
Sector
Research
Area
1,228.8 sqm
Structure
Existing Venlo Glasshouse
Roof glazing
ETFE / 4.0mm Float glass
PROJECT
UK Agritech Centre - Venlo Roof Replacement
Ebtech Glasshouse Systems was commissioned by the UK Agri-Tech Centre to participate in an innovative experimental project aimed at advancing research in greenhouse renovation and environmental control technologies. The project was located within the glasshouse facilities on the University of Warwick's Wellesbourne campus.

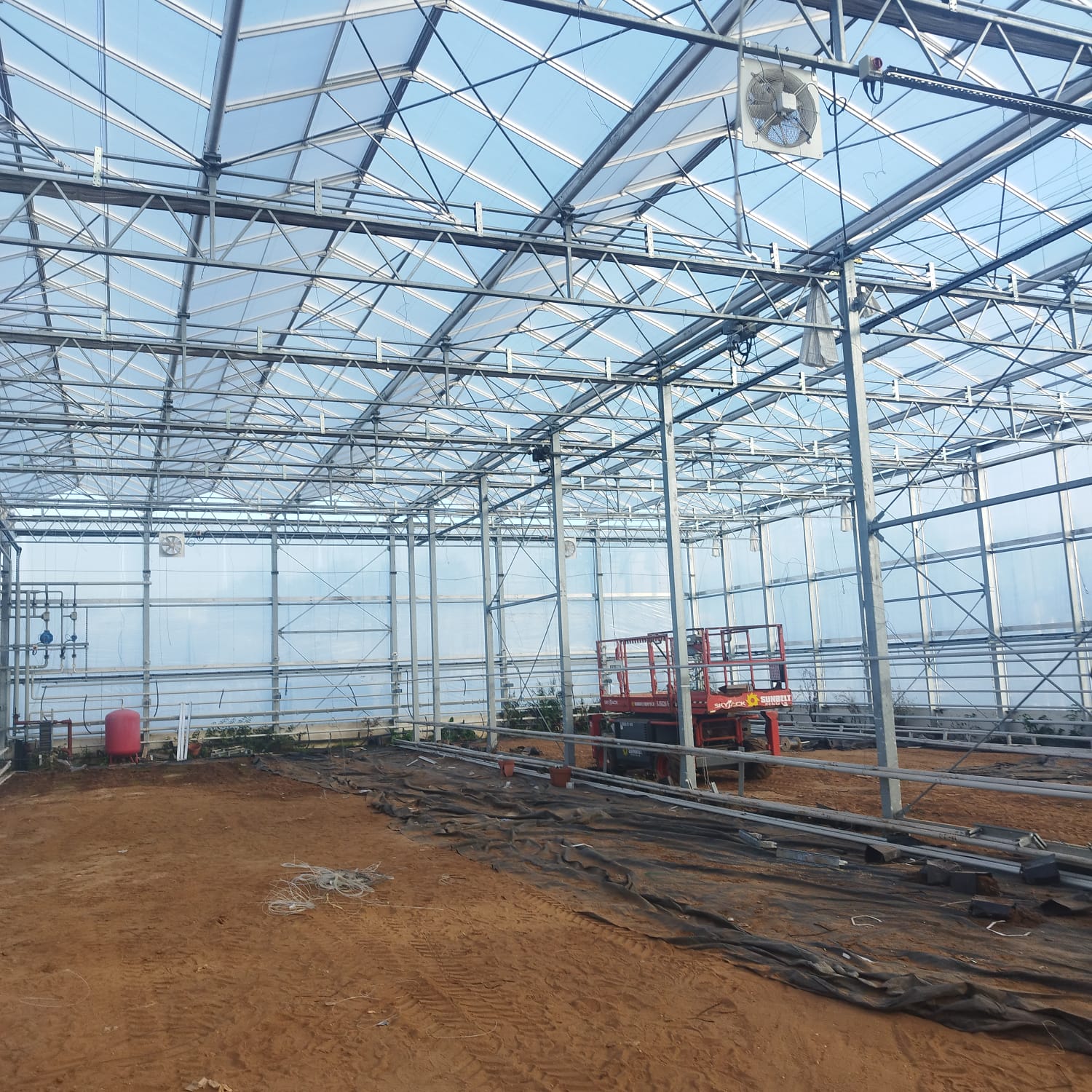

The scope of the work involved the complete removal of the existing ETFE roofing system covering a total area of 1,228.8 m². This comprised four bays, each 9.60 meters wide (totalling 38.4 meters), and eight sections of 4.00 meters in length (totalling 32.0 meters).

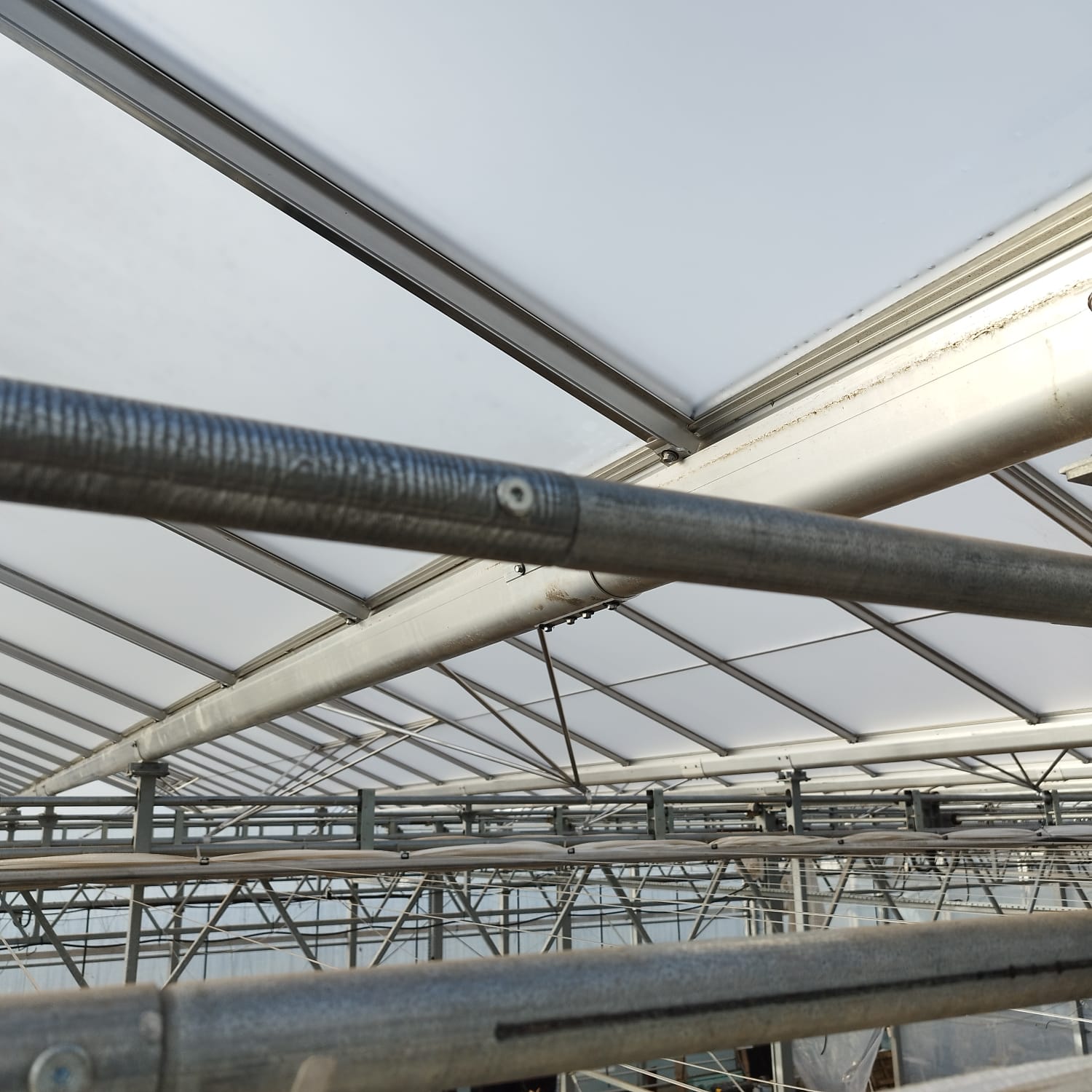

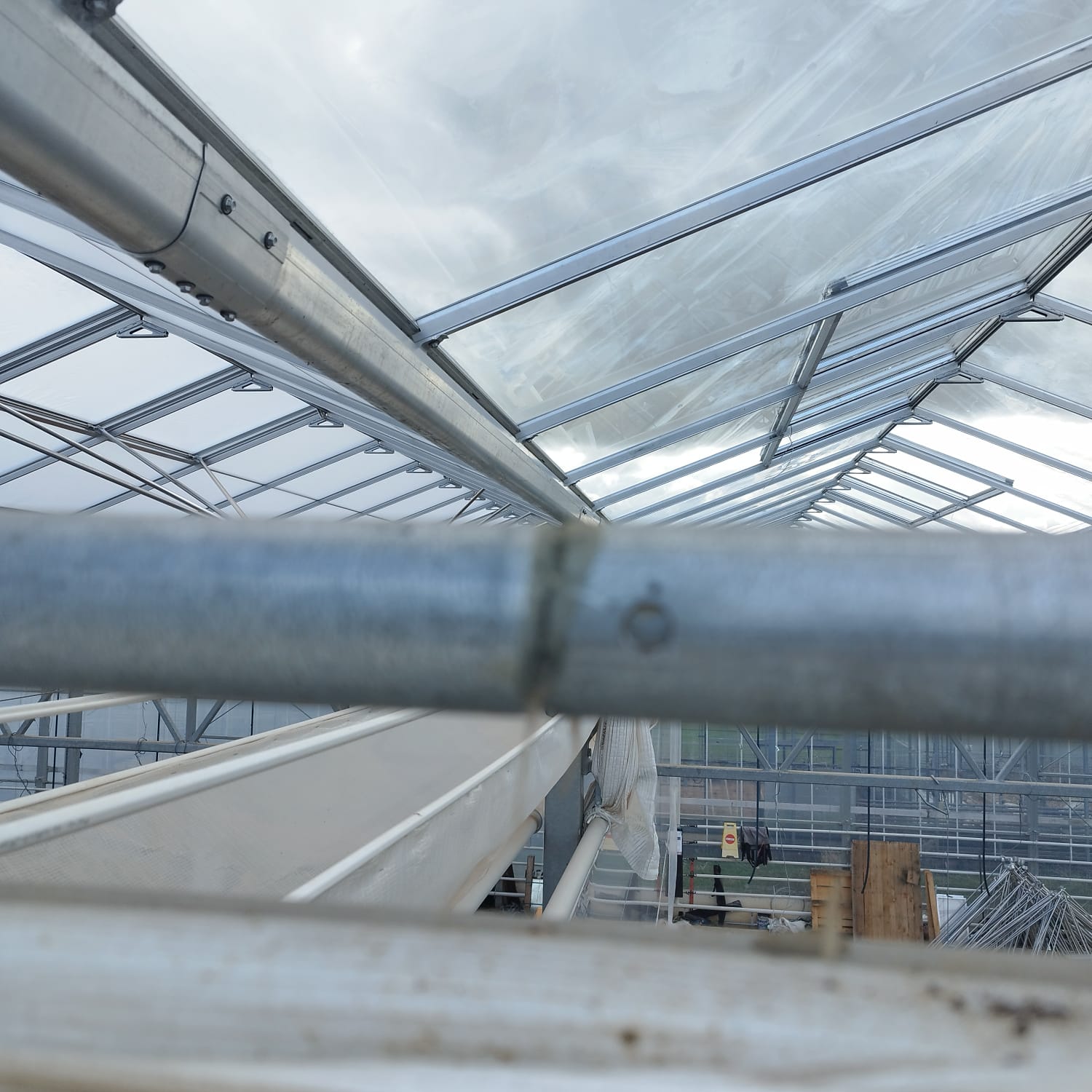

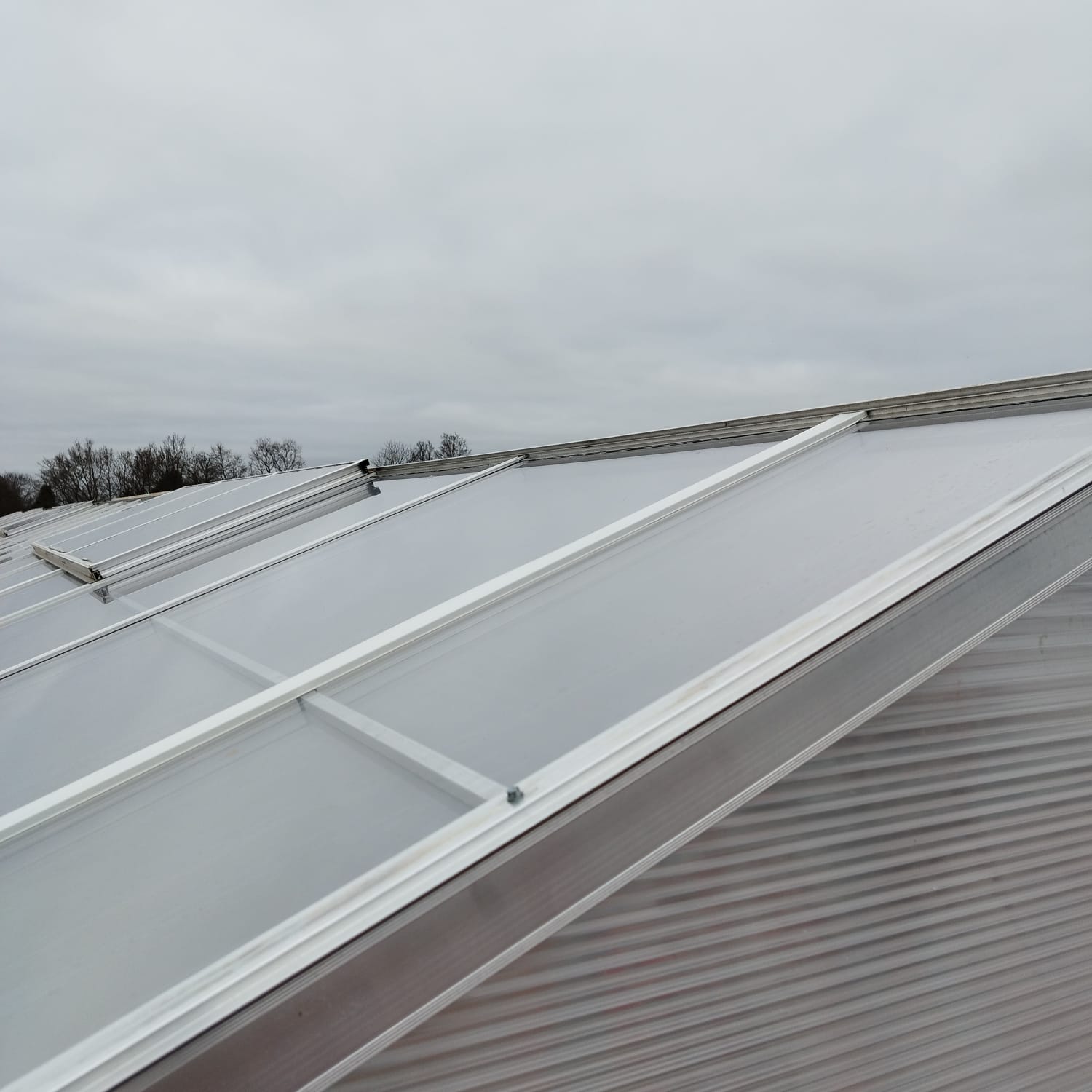

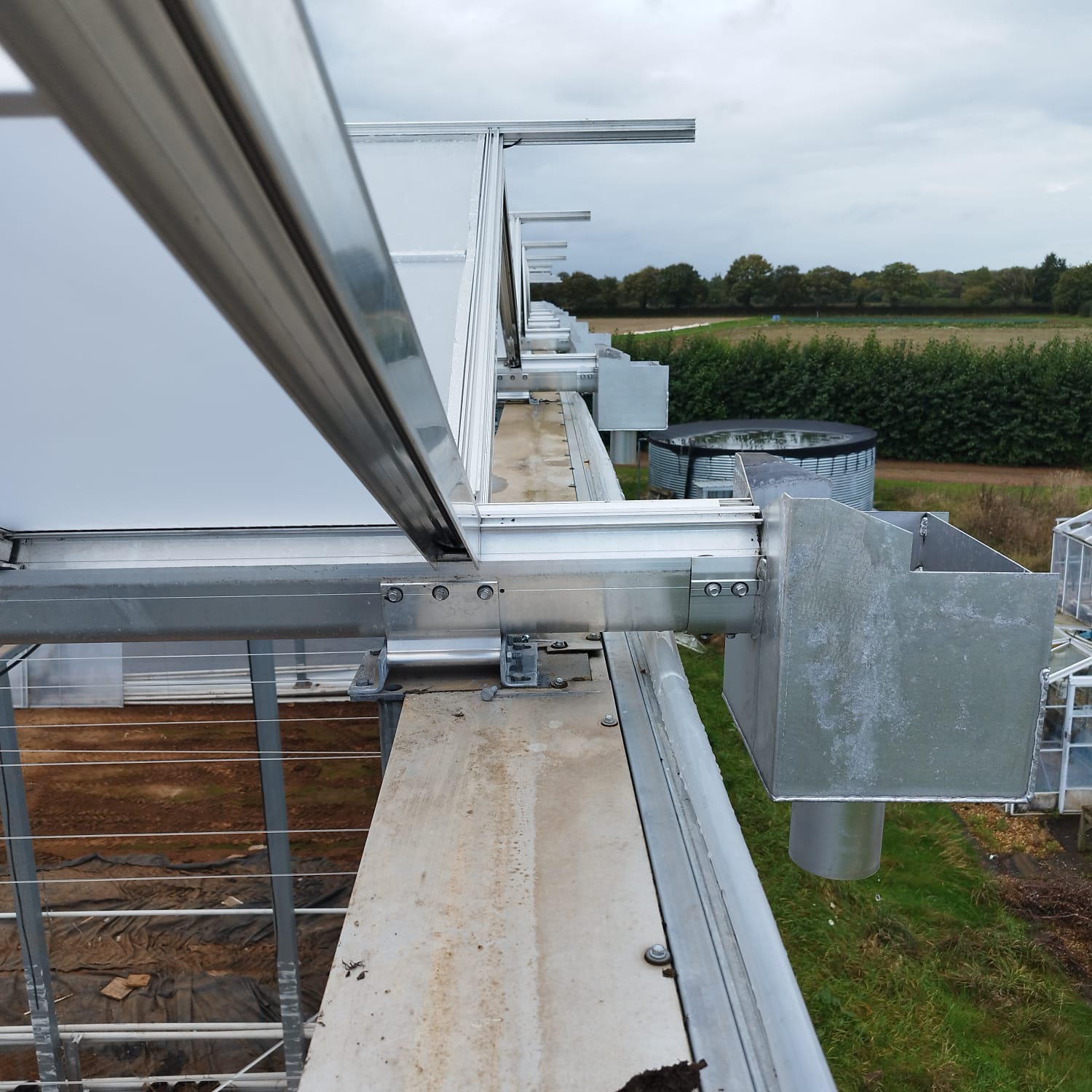

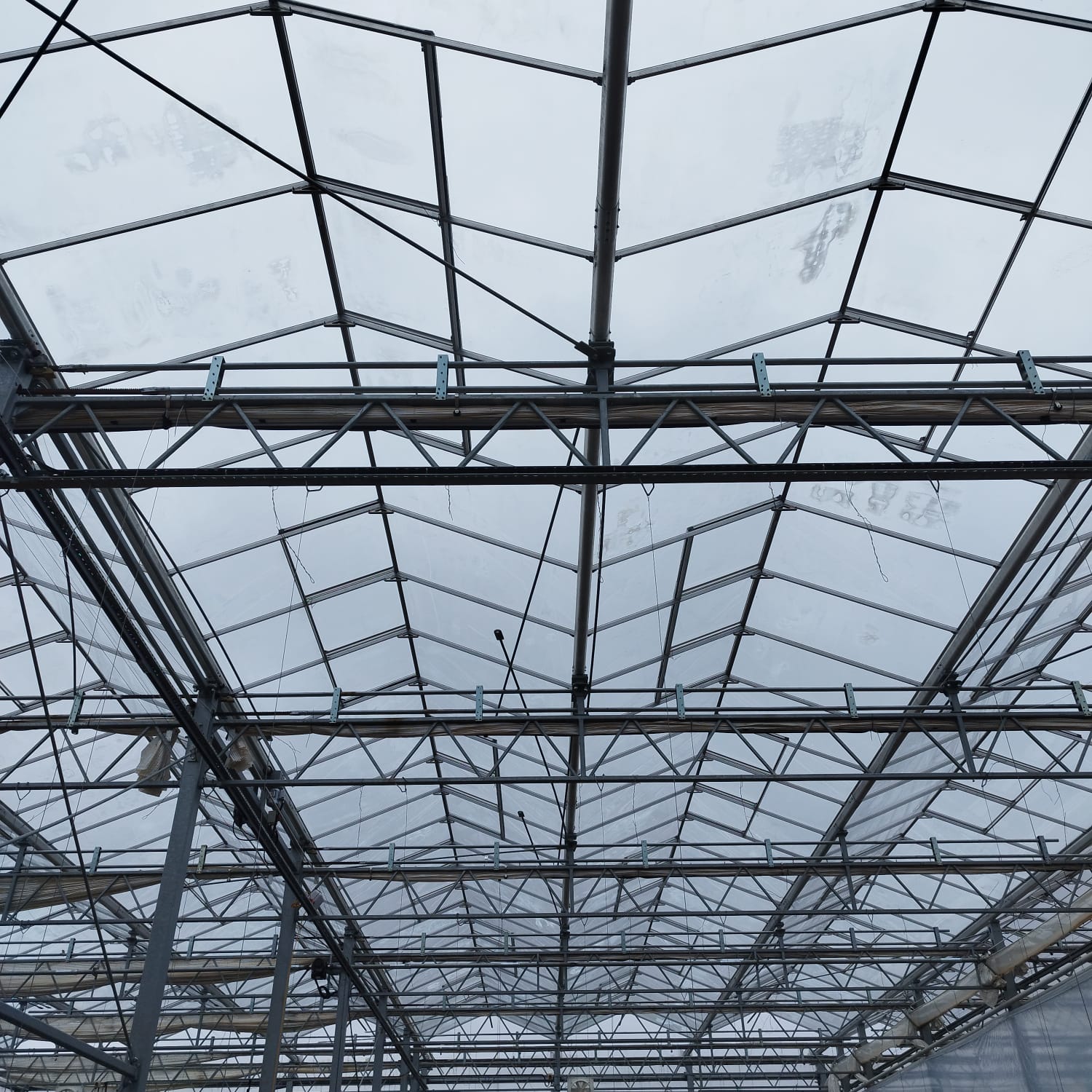

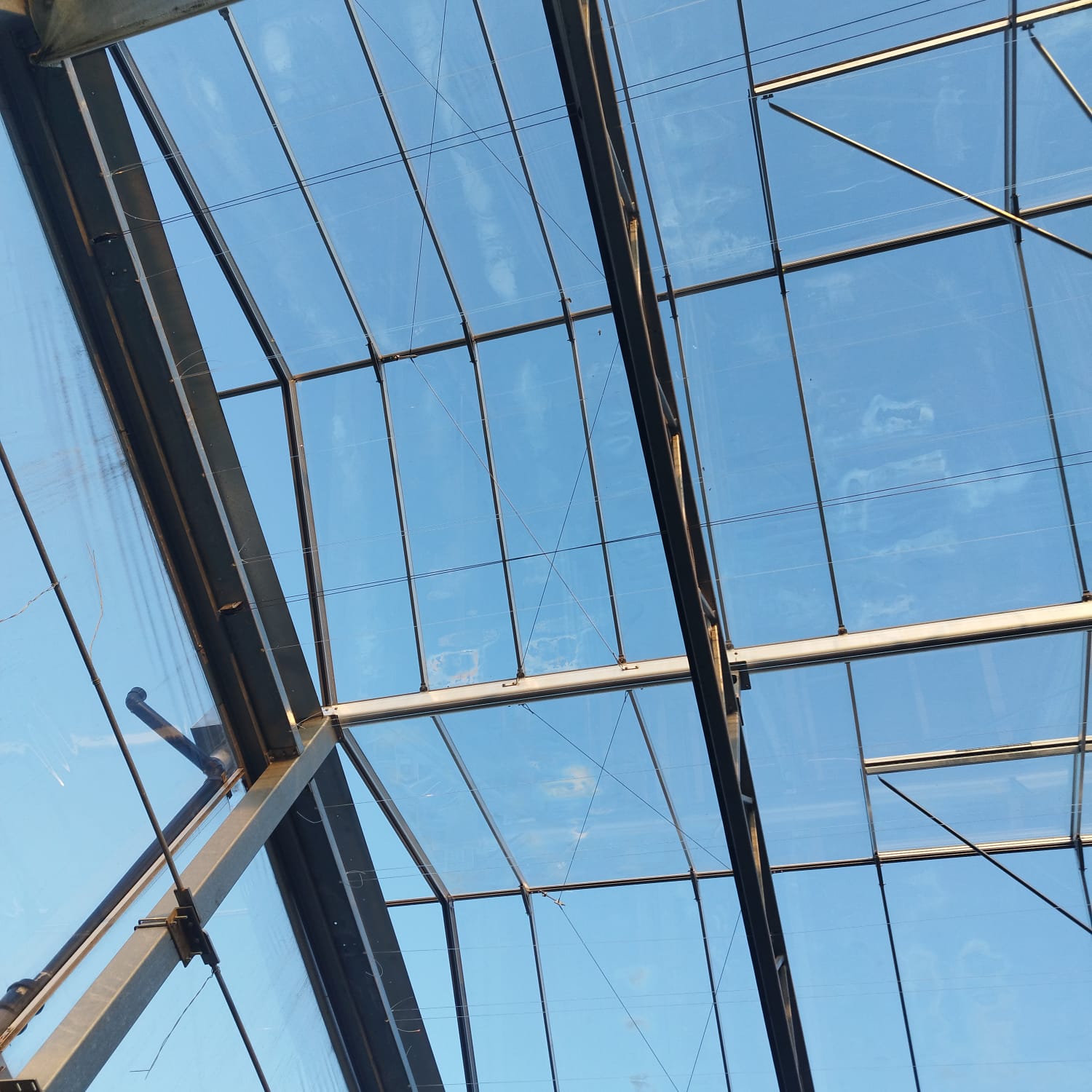

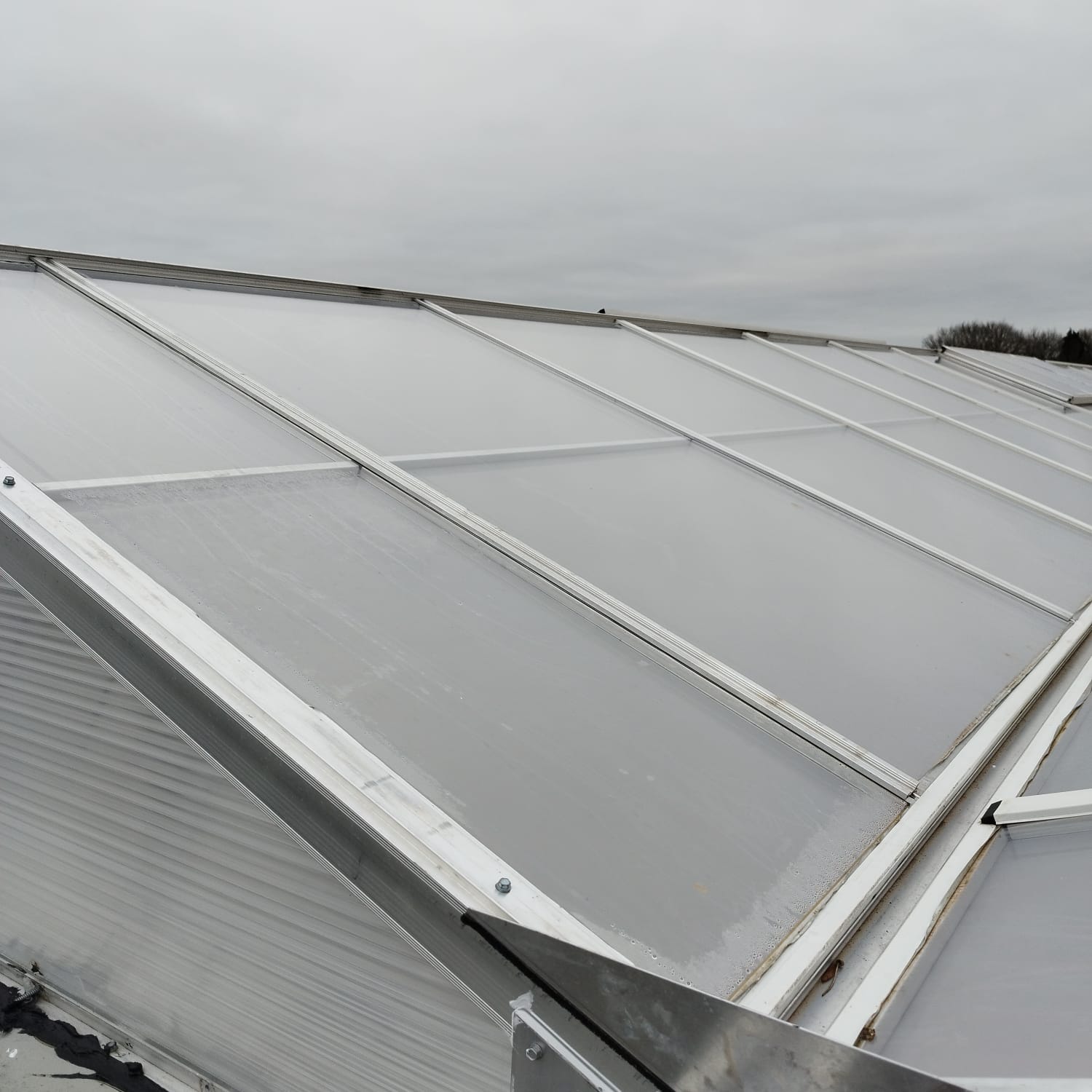

Following removal, Ebtech installed a completely new roof guttering system. The roof was then re-glazed, half with new ETFE panels and the other half with traditional float glass. This dual-material approach was designed to support comparative research into the different growing environments provided by each glazing type.

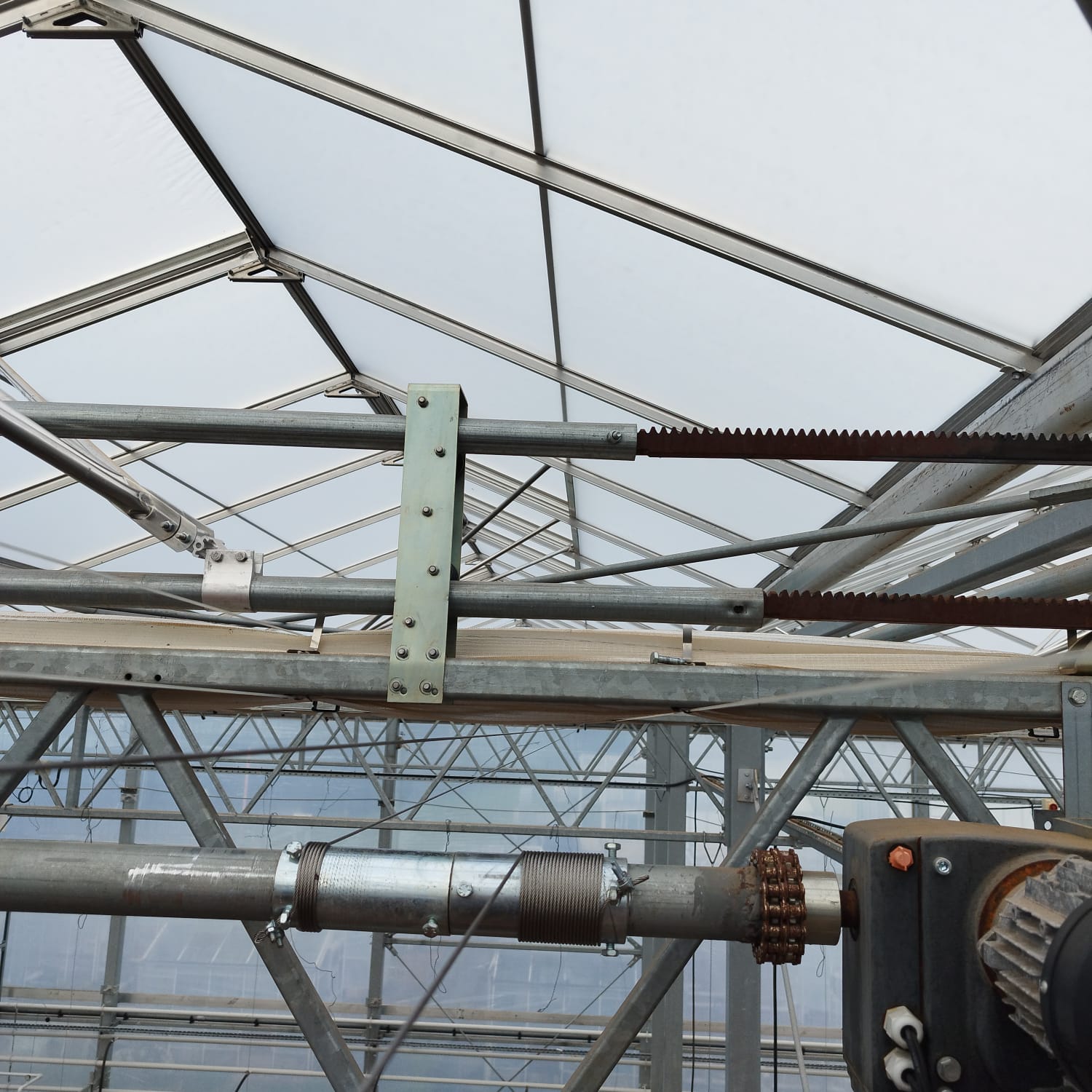

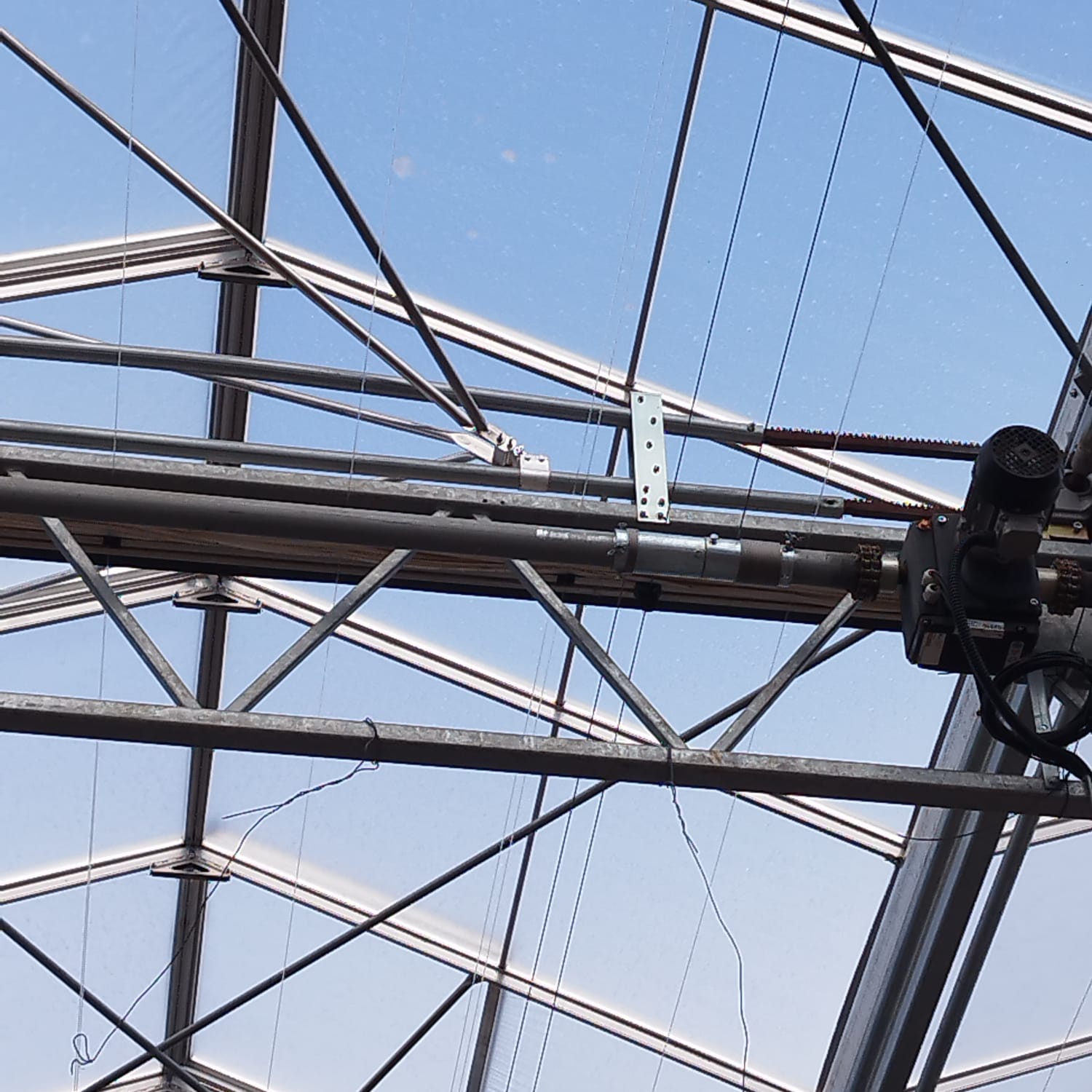

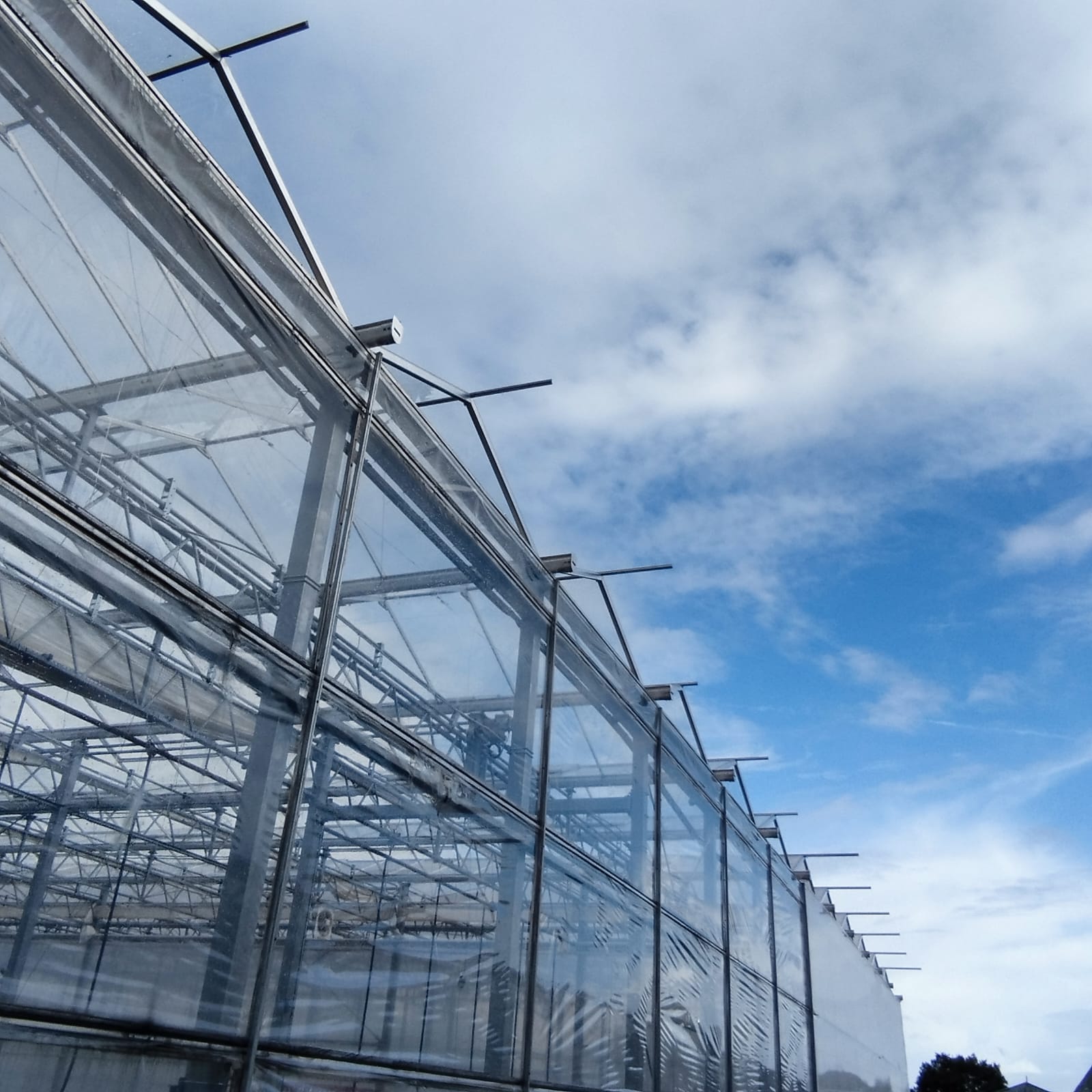

Additionally, the venting systems across each of the bays were fully renewed. The project also included the replacement of selected elements of the existing thermal screening, heating, and grow gutter systems to ensure compatibility with the upgraded roofing structure.
This project supports the ongoing research into sustainable and efficient horticultural environments, aligning with the UK Agri-Tech Centre’s mission to foster cutting-edge innovation in horticultural technologies.
"We recently contracted Ebtech Glasshouse Systems as a key partner in a comprehensive glasshouse refurbishment, having had positive experiences with them on previous projects. Their communication throughout was excellent—they kept us informed at every stage and collaborated seamlessly with all parties involved. Whenever we requested photographs or video updates, they provided them promptly. The quality of their workmanship was consistently high, and they demonstrated a practical, realistic approach when external challenges arose, handling these with pragmatic solutions. Overall, Ebtech delivered outstanding results, and we would be more than happy to work with them again."
Alex Jubb - Capability Coordinator - UK Agritech Centre
